NISAR Modes¶
The NISAR observation plan is complex. In order to meet the broad science goals of the mission, different radar modes are used to collect data for different geographic areas, as described in the NISAR Observation Strategy.
Mixed Mode¶
When the satellite changes acquisition modes in the middle of a frame, separate granules are produced each covering only a portion of the frame. Where possible, a mixed mode granule is also created, covering the full frame and having the coarser of the two resolutions and only the common subset of polarizations.
Mixed mode acquisitions are identified in the file naming convention in different places for different product types:
For single-acquisition products (RSLC, GSLC, GCOV) and SME2 products, mixed mode is indicated by an M (mixed) instead of an S (single) for the Source of data component of the filename.
For raw data products (RRSD), mixed mode is indicated by an M rather than an S in the last digit of the Radar Mode (RDME) component of the filename.
The naming scheme for products generated from pairs of acquisitions (RIFG, RUNW, GUNW, ROFF, GOFF) does not identify mixed mode products.
The individual products that are generated for the different modes are identified with a P (partial) rather than an F (full), but the mixed mode product is designated with an F like any other non-mixed product.
There is no easy way to exclude mixed mode pair-wise products from a search at this time, so it’s important to be aware that search results may include mixed mode products.
NISAR Reference Observation Plan¶
The reference observation plan for the first six months of the mission is documented in Figure 4-1 of the NISAR Mission Handbook, which is replicated here in Figure 1 for convenience.
](/nisar-docs/build/nisar-reference-obse-b3d84125e1c5fcb54f1c8f7ae91a727d.png)

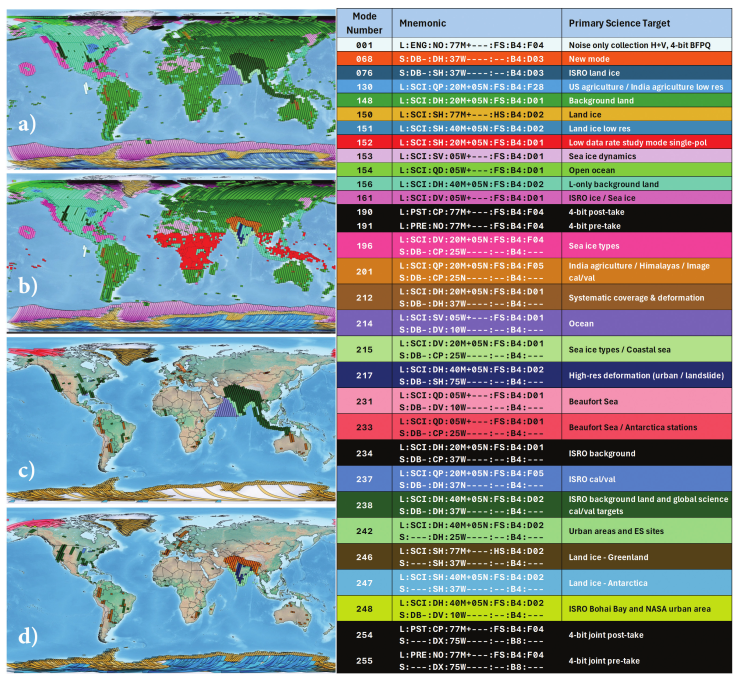

Figure 1:NISAR Reference Observation Plan coverage maps for global ascending (a) and descending (b) passes, and joint L-band and S-band ascending (c), and descending (d) data takes. This plan will be in place for the initial six months of the mission.
The project plans to review and adjust the plan every six months, depending on science team input, available resources, and other programmatic factors.
The legend describes the modes that will be employed, including the mode mnemonic.
There are some variations in coverage seasonally (e.g. over the poles as sea ice comes and goes), but largely the acquisition plan is intended to be static geographically to allow generation of consistent time series over the life of the mission.
Observation Plan KMZ Files¶
KMZ files for the observation plan are available for download from the NISAR Data Overview page, including files for:
The extent of the currently available pre-calibration data
The most recent reference observation plan, indicating the coverage that will be available once calibrated data has been released
Mnemonic Scheme¶
A mnemonic is used to describe each radar mode, which is more informative than simply the mode number. This mnemonic is referenced both in Figure 1 and in the Observation Plan Interactive Apps.
L-band Mnemonic Scheme¶
The mnemonic scheme for L-band radar modes is the following:
L:CCC:MM:BBlPl+BBuPu:WW:DD:FFF
Table 1 describes each component in the L-band mnemonic scheme.
Table 1:L-band Mode Mnemonic Scheme (after Table 4-1 in the NISAR Mission Handbook)
| Attribute | Meaning |
|---|---|
| L | L-band |
| CCC | Mode category (ENG = engineering mode, SCI = science mode, PST = post-take, PRE = pre-take) |
| MM | Mode name (QP = quad pol; DH = dual pol HH/HV; SH = single pol HH; QD = HH in lower band, VV in upper band; QQ = HH/HV in lower band, VV/VH in upper band) |
| BBl | Bandwidth of lower band |
| Pl | Pulse width of lower band (W = wide, M = medium, N = narrow) |
| BBu | Bandwidth of upper band |
| Pu | Pulse width of upper band |
| WW | Swath width (FS = full swath 240 km, HS = half swath) |
| DD | Bit depth (B4 = 4 bit quantization, B3 = 3 bit quantization) |
| FFF | Pulse repetition frequency scheme (e.g. F28 is fixed PRF scheme, D01 is a variable PRF scheme) |
S-band Mnemonic Scheme¶
The S-band mnemonic scheme is similar to L-band:
S:XX:MM:BBP:WW:DD:FFF
Table 2 describes each component in the S-band mnemonic scheme.
Table 2:S-band Mode Mnemonic Scheme
| Attribute | Meaning |
|---|---|
| S | S-band |
| XX | Beam-forming mode (DB = beamform; DR = raw channels of the beamformer; NR = no beamforming) |
| MM | Mode name (QP = quad pol; DH = dual pol HH/HV; SH = single pol HH; QD = HH in lower band, VV in upper band; QQ = HH/HV in lower band, VV/VH in upper band) |
| BB | Bandwidth |
| P | Pulse width (W = wide, M = medium, N = narrow) |
| WW | Swath width. S-band acquisitions are always full swath, so this term is left off the mnemonic. |
| DD | Bit depth (B4 = 4 bit quantization, B3 = 3 bit quantization) |
| FFF | Pulse repetition frequency scheme. For joint modes, the PRF scheme is left off the mnemonic because it is the same as the L-band PRF. |
Interactive Apps¶
The NISAR Reference Observation Plan can be explored interactively using a series of web applications.
Apply filters to view the spatial extent of planned L-band acquisitions based on flight direction, track/frame, polarization, bandwidth, frequency, date, mode changes, or product type
Zoom or pan to view your area of interest
Click on a footprint to learn about the acquisition information for that frame, including a list of previous and upcoming acquisition dates
Export geospatial files containing information about selected frames
There are different applications available, displaying either the currently available set of pre-calibration data, or the full reference observation plan once calibrated data is available. Refer to Available NISAR Data to view the release timeline for the different collections of data.
For each data extent (pre-calibration data or reference observation plan), there are two different apps. One is suitable for viewing most of the globe, while the other is optimized for viewing acquisitions over Antarctica. The apps optimized for Antarctica use a south polar stereographic projection to improve the rendering of frame footprints.
Reference Observation Plan Apps¶
These applications allow you to explore the L-band NISAR acquisitions for the full NISAR mission observation plan.

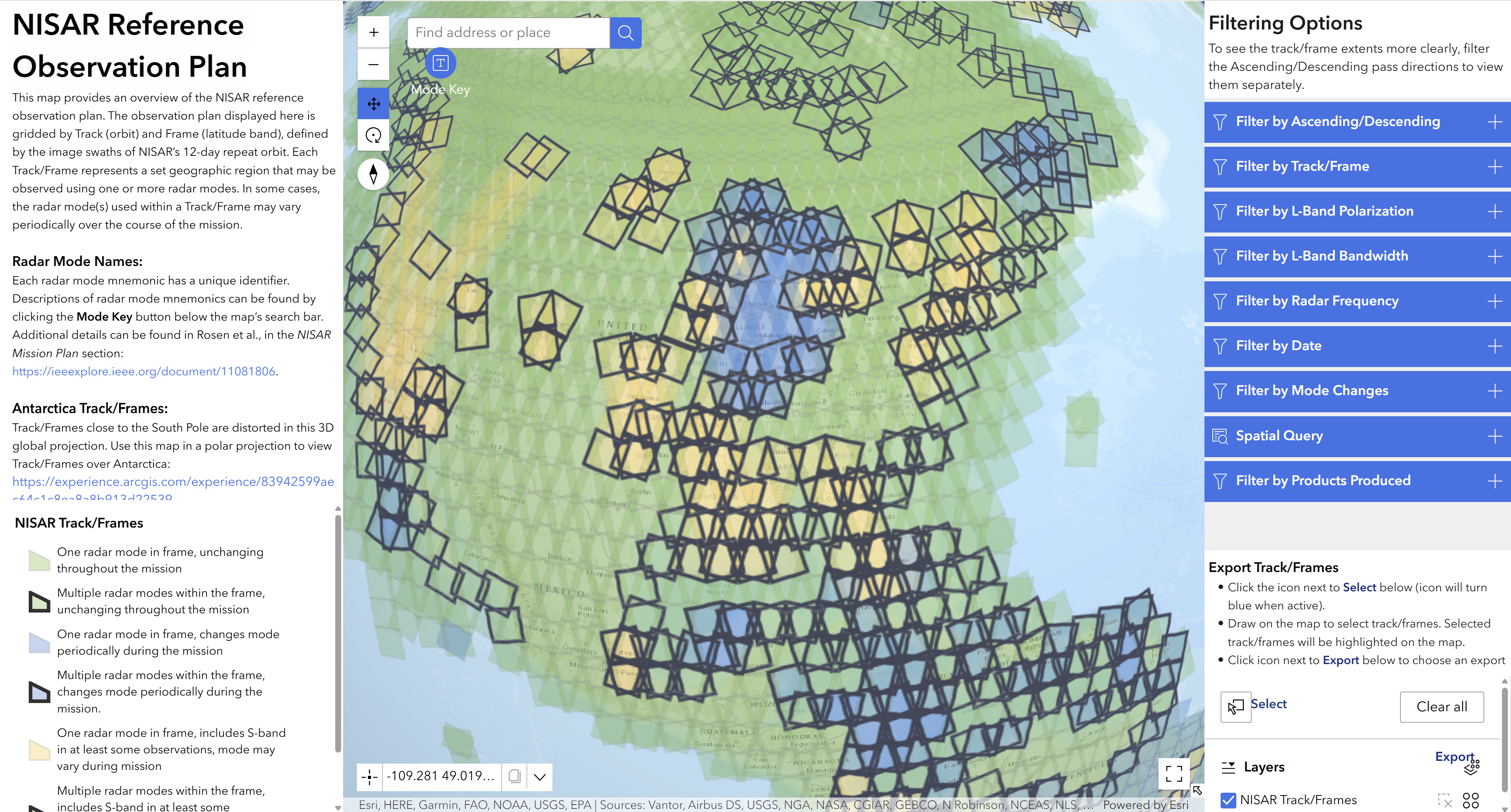

NISAR Reference Observation Plan - Global¶

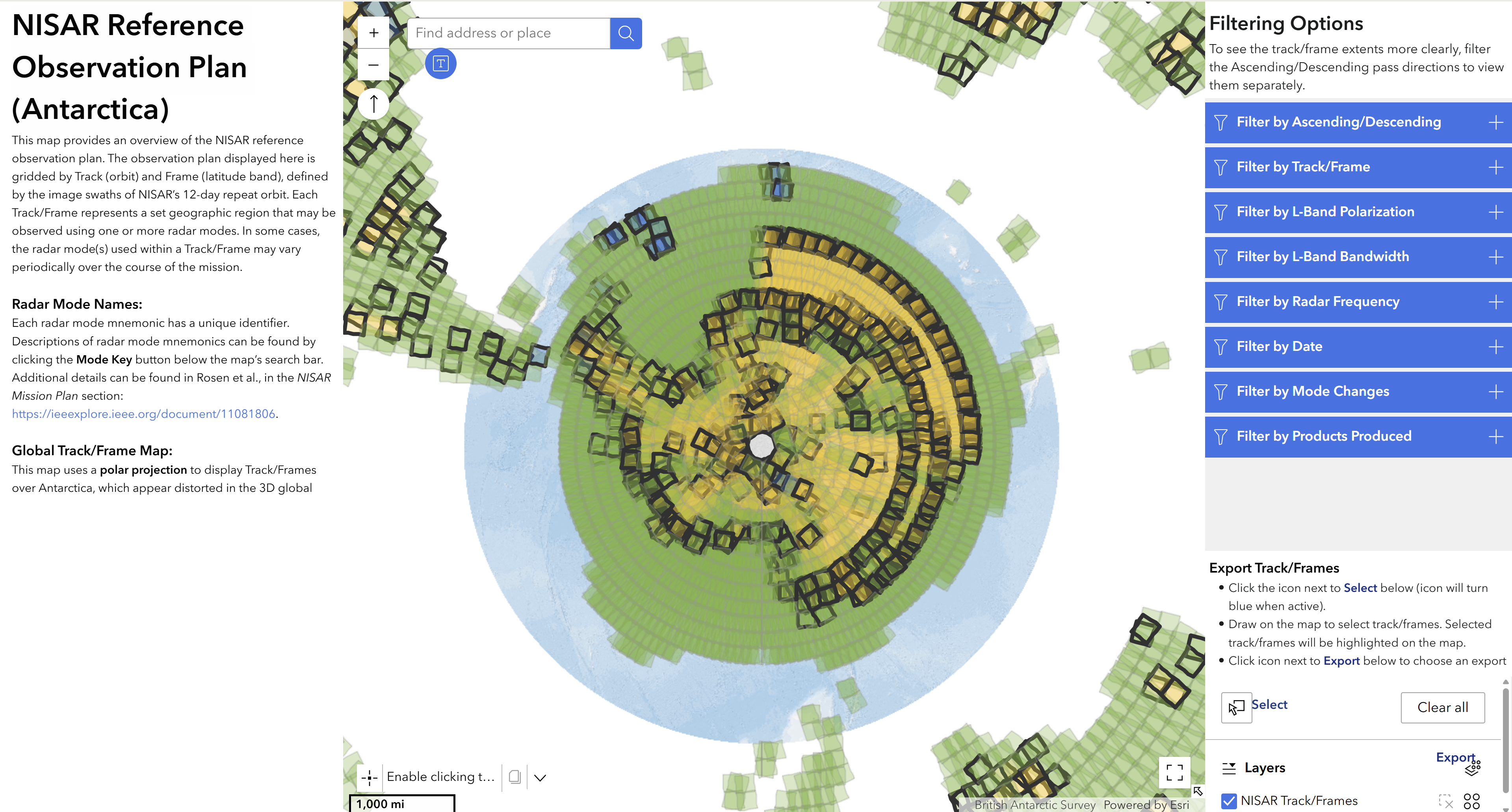

NISAR Reference Observation Plan - Antarctic¶

Pre-Calibration Data Apps¶
These applications reference the L-band NISAR products included in the NISAR BETA Data: February 2026 data release, which are only available for select frames around the world.

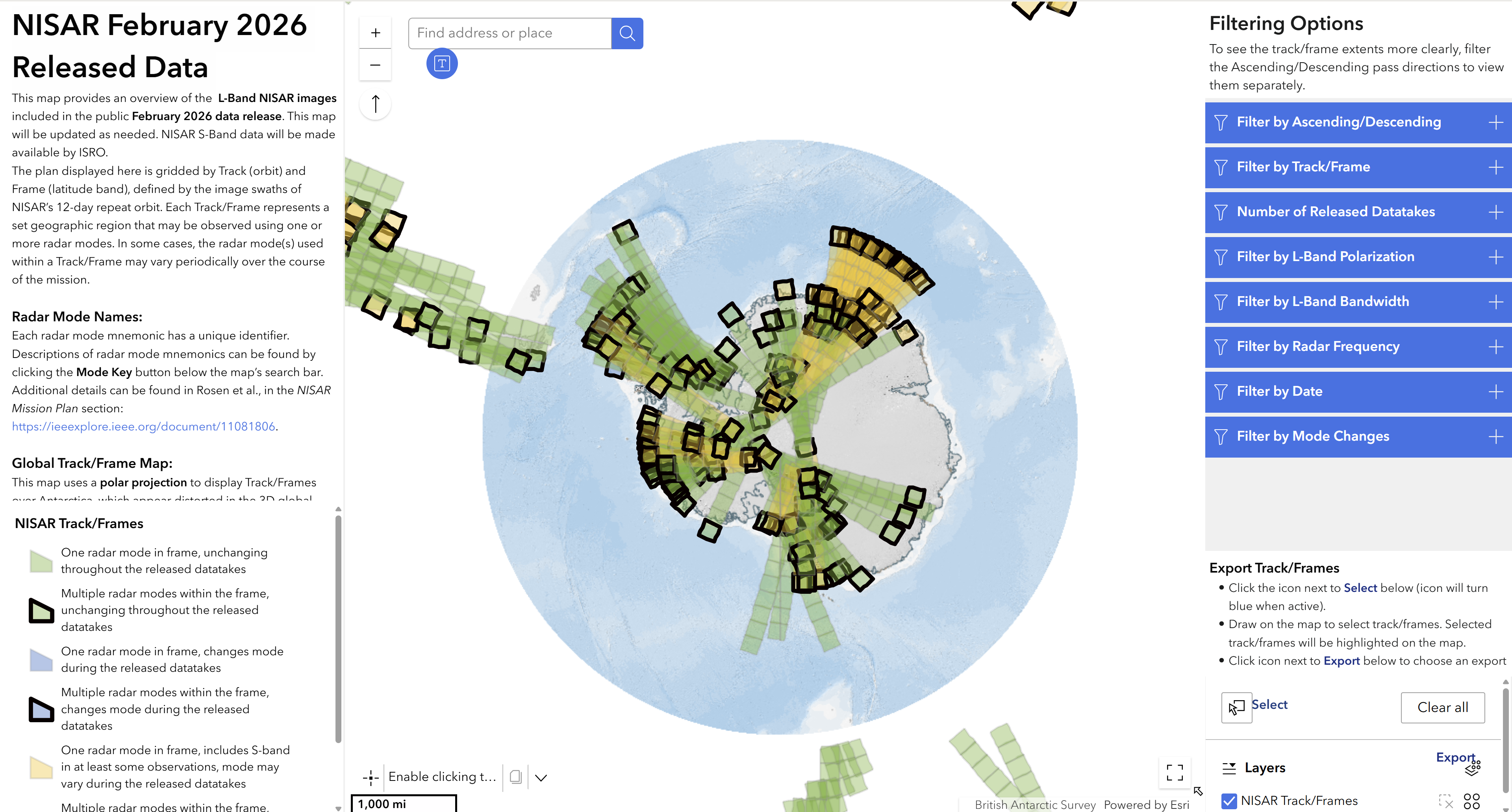

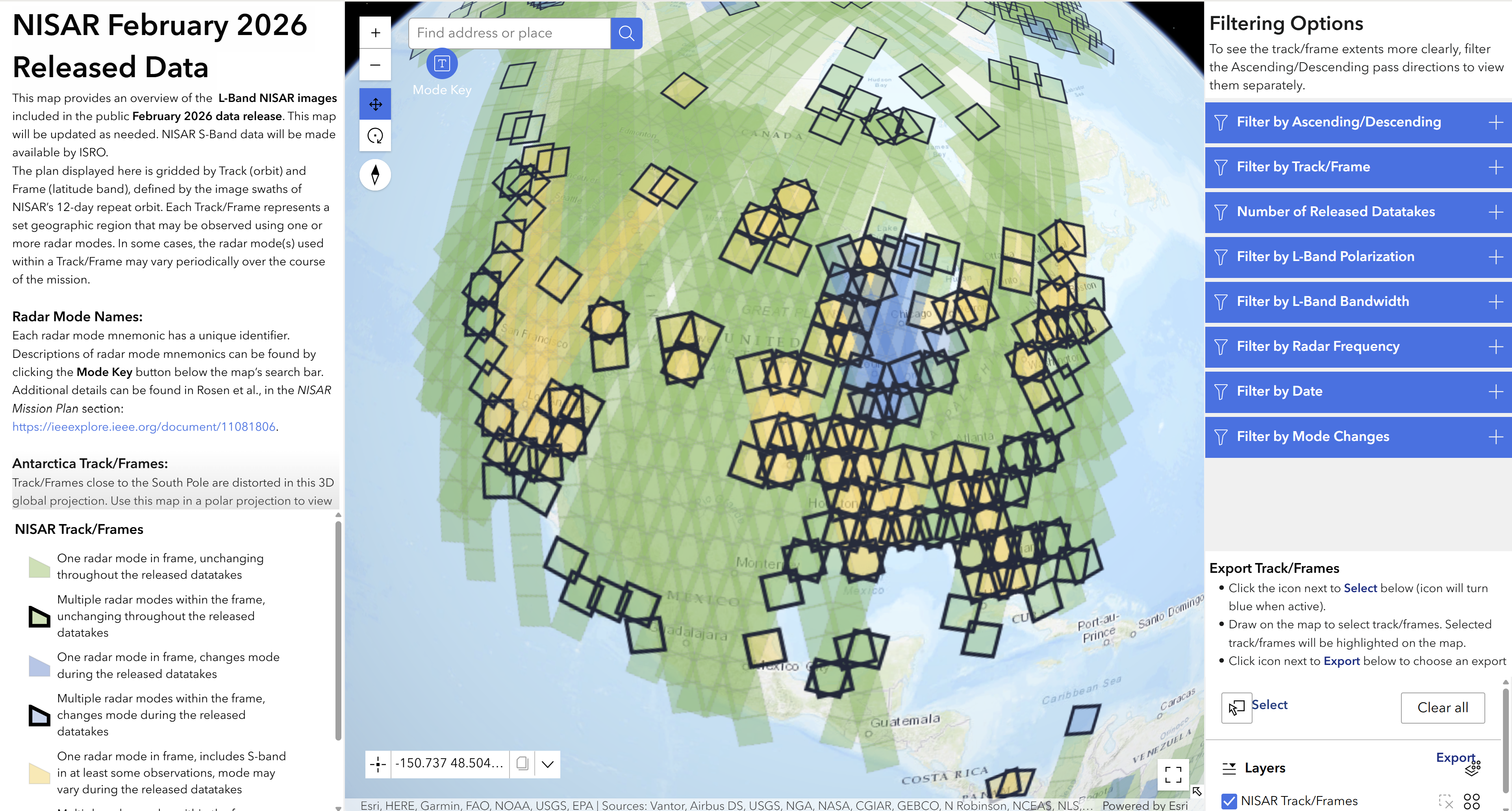

NISAR February 2026 Released Data - Global¶
NISAR February 2026 Released Data - Antarctic¶
- NISAR. (2025). NASA-ISRO SAR (NISAR) Mission Science Users’ Handbook, Second Edition (Second Edition). NASA Jet Propulsion Laboratory. 10.48577/jpl.UD4HV3
