The NISAR Mission¶

NISAR is a joint Earth-observing mission between the National Aeronautics and Space Administration (NASA) and the Indian Space Research Organization (ISRO), with the goal to make global measurements of the causes and consequences of land surface changes using advanced radar imaging. Access to NISAR mission data is free and open.

The NISAR platform collects data using both L-band and S-band SAR sensors. NASA hosts the data acquired by the L-band sensor, and ISRO hosts the data collected by the S-band sensor.

• L-band data is collected globally, providing acquisitions over most landmasses and sea ice on a regular repeat cycle.

• S-band data is collected over select areas, as described in the mission observation plan.

NISAR Mission Concept¶

The mission concept and the resulting partnership were in response to the National Academy of Science’s 2007 Decadal Survey National Research Council, 2007 of Earth observational priorities for the next decade.

One of the top priorities identified in this survey was to gain data and insight in three Earth science domains:

• Ecosystems

• Deformation of Earth’s Crust

• Cryospheric Sciences

Refer to NASA’s NISAR Mission website for more information.

NISAR Science Objectives¶

The NISAR Mission Science Users’ Handbook NISAR, 2025 defines the key scientific objectives as follows:

NISAR addresses the needs of Solid Earth, Ecosystems, Cryospheric, and Soil Moisture science disciplines, with a specific focus on the following key scientific objectives to:

1. Determine the likelihood of earthquakes, volcanic eruptions, landslides, and land subsidence

2. Understand the dynamics of carbon storage and uptake in wooded, agricultural, wetland, and permafrost systems

3. Understand the response of ice sheets to variations in the climate, the interaction of sea ice and climate, and impacts on sea level rise worldwide

4. Constrain global patterns of soil moisture and their temporal variability, across a wide range of land cover types and climate regimes

NISAR Mission Science Users’ Handbook¶

The NASA-ISRO SAR (NISAR) Mission Science Users’ Handbook NISAR, 2025 provides a wealth of information about all aspects of the mission. It describes the mission goals, requirements, characteristics and instrumentation. It also provides an overview of the mission data products and the range of scientific applications supported by the mission.

Published by JPL, this valuable resource is a PDF publication available online. It is a large document that can either be viewed directly in a browser or downloaded for offline use.

Note that all references to the NISAR Mission Science Users’ Handbook on this site link to the second edition, which was published in 2025. This edition supersedes the previous edition, published in 2019, and we advise users to reference this second edition instead of the older publication.

Jet Propulsion Laboratory¶

The Jet Propulsion Laboratory (JPL) is located on the outskirts of Pasadena, California. Founded in 1936 by California Institute of Technology (Caltech) researchers, JPL is a research and development lab federally funded by NASA and managed by Caltech.

JPL leads the U.S. portion of the NISAR project on behalf of NASA, including project management, providing physical components of the satellite, testing, coordinating science product development, developing and processing data products, and publishing product specifications and algorithm theoretical basis documents.

JPL generates a suite of products from NISAR mission data, ranging from Level 0 to Level 3, which ASF makes available to the public. Refer to the data products section of this site for more information on NISAR data products.

Alaska Satellite Facility¶

The Alaska Satellite Facility (ASF) Distributed Active Archive Center (DAAC) has been selected to archive the data from the NISAR mission. ASF maintains the NASA archive of Synthetic Aperture Radar (SAR) data from various satellites and aircraft, providing these data and associated services to the public in support of NASA’s Earth Science Data and Information System (ESDIS) project.

ASF utilizes NASA’s Earthdata Cloud for processing, storage and distribution of the data. This environment leverages Amazon Web Service (AWS) infrastructure, allowing datasets to be accessed directly and efficiently in cloud computing workflows.

NISAR Instrumentation¶

SweepSAR¶

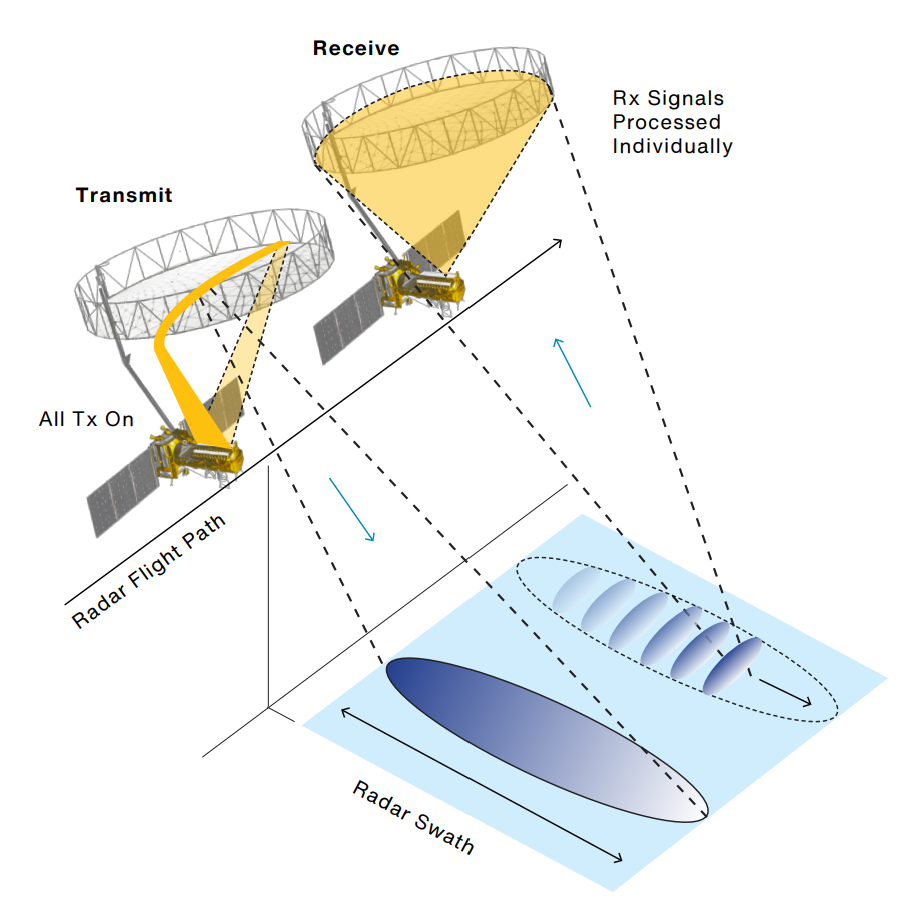

NISAR was designed to deliver global coverage at full resolution and with polarimetric diversity. The technical innovation that allows this performance is the scan-on-receive SweepSAR design, conceived and refined collaboratively by NASA and the German Space Agency (DLR).

A more detailed description of the NISAR instrument design is in section 4.7 of the NISAR Mission Handbook NISAR, 2025.

Pulse Repetition Frequency¶

SweepSAR is able to generate gapless imagery by varying the Pulse Repetition Frequency (PRF). Because the radar cannot receive echoes while it is transmitting, there are gaps in the imagery when the PRF is fixed. By varying the PRF, or dithering, NISAR moves the gaps around as data is acquired, allowing for interpolation across the gaps.

Most of NISAR’s acquisition modes make use of variable PRFs, generating gapless imagery. There are, however, some fixed PRF modes. In the current acquisition plan, fixed PRFs are only used for quad-pol acquisitions.

Quad-pol acquisitions¶

All NISAR quad-pol observations currently use a fixed PRF because of the operational constraints of quad-pol acquisitions. Using variable PRFs degrades image quality, so the tradeoff for high image quality is the presence of bands of data gaps in the imagery, as seen in Figure 2.

These gaps are moved from cycle to cycle to allow complete coverage over time, but any individual image will have some data missing. This is a permanent and expected feature of standard NISAR quad-pol acquisitions.

The NISAR mission is experimenting with variable PRF acquisitions, and products generated using this approach may be made available in the future, but this experimental mode is still being evaluated.

Look Direction¶

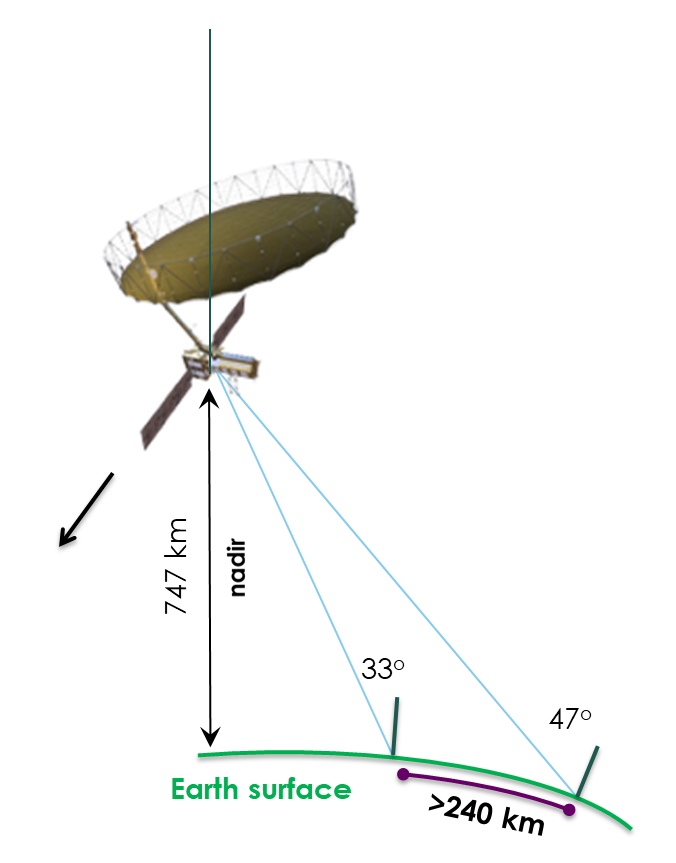

SAR sensors are always side looking, with data being collected at an angle from the nadir (Figure 3).

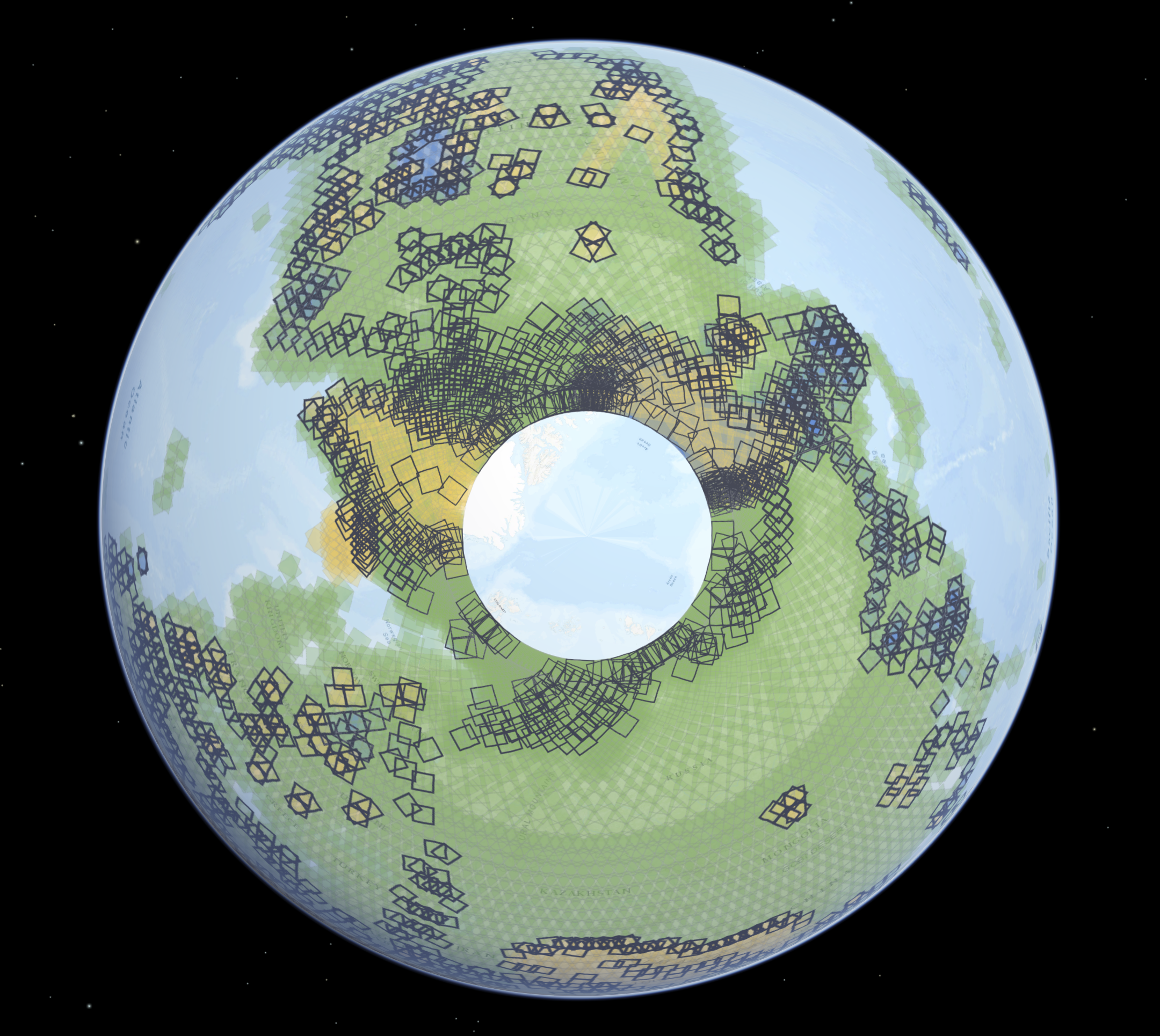

NISAR is a left-looking mission, which allows for complete coverage over Antarctica. The tradeoff is an area around the North Pole where coverage is not available (Figure 4).

Bands¶

The NISAR mission collects data using two different SAR sensors, each acquiring data in a different band, or range of wavelengths.

L-Band¶

The L-band Synthetic Aperture Radar (L-SAR) instrument is the focus of the NASA-chartered science goals for NISAR, and provides global coverage. The L-SAR instrument operates at a wavelength of 24 cm.

Most L-band acquisitions have a swath width of about 240 km, an along-track resolution of 7 m, and a cross-track resolution of 2 to 8 m (depending on mode).

S-Band¶

The S-band SAR (S-SAR) instrument, developed in a collaboration between NASA and the Indian Space Research Organization (ISRO), operates at a wavelength of 9.3 cm and is primarily used for acquisitions over India.

Frequencies¶

NISAR is equipped to acquire data in two slightly different frequencies at each bandwidth. Table 1 summarizes the Frequency A and the Frequency B settings that define the acquisition modes.

Frequency A is the primary frequency used for generating scientific products, while Frequency B data is collected primarily for use in atmospheric corrections. Many NISAR products include datasets for both Frequency A and Frequency B data, and some users may find the Frequency B data useful in its own right.

Frequency B datasets are generally posted at a coarser pixel spacing than Frequency A datasets, so analysis workflows requiring higher resolution are better served by the Frequency A data. The larger pixels of Frequency B datasets result in them being much smaller files, which take less time to download and render, making them useful for regional analysis workflows or a quick look at the data.

Polarization¶

The polarization refers to the direction that an electromagnetic wave travels. This can be horizontal, vertical, or circular. Circular polarizations, where the wave is rotating in a constant plane to the left or right, are much less commonly used for SAR sensors than linear (horizontal or vertical) polarizations.

The antennas of a SAR system can be configured to transmit and receive electromagnetic waves using various combinations of these polarizations. The polarimetric properties of the observed surface can reveal the structure, orientation and environmental conditions of the surface elements.

Signals that are transmitted and received in the same polarization are called co-polarized (co-pol). Signals that are received in a different polarization from the transmitted polarization are called cross-polarized (cross-pol).

NISAR Polarimetric Channels¶

For the NISAR mission, the polarimetric channels available in a product will vary based on the acquisition mode. The 2-digit polarization code, indicating the transmit polarization followed by the receive polarization, is indicated as part of each dataset name.

Each product filename indicates the polarimetric channels available for the datasets contained in that product. Refer to NISAR Naming Conventions to see where the polarization is indicated in the filename for different product types.

The potential polarization configurations for NISAR products are as follows:

• Single polarization (single-pol)¶

  • SH: HH single-pol data

  • SV: VV single-pol data

• Dual polarization (dual-pol)¶

  • DH: HH+HV dual-pol data

  • DV: VV+VH dual-pol data

• Quad polarization (quad-pol)¶

  • QP: HH+HV+VH+VV quad-pol data

• Compact polarization (circular)¶

  • RH: right-circular HH data

  • RV: right-circular VV data
